Specs and Geometry

Specification
STANDOVER HEIGHT 63CM
FRAMEHAND BRUSHED AL6061, FORGED SLIDING DROP OUTS
FORKHAND BRUSHED AL6061, FORGED DROP OUTS
STEERERTUBE AL6061
CRANKSSAMOX 127MM DIRECT MOUNT,
PEDALSER WORKS PLATFORM, CNC'D AL6061, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKETSAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE
RIMS24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
REAR HUBER 4 BEARING CASSETTE FREEHUB, CNC'D AL6061
FRONT HUBCNC’D 6 BOLT DISC, AL6061, QR SKEWER
AXLESAL6061
CHAINKMC eGLIDE
CHAINRING

DIRECT MOUNT, NARROW WIDE 30T, STEEL
WEIGHT10.3KGS W/O PEDALS
REAR CASSETTESHIMANO 9-SPEED 11-36T
BRAKESTEKTRO HYDRAULIC JR, 160MM ROTORS
LEVERSTEKTRO SHORT REACH
FRONT TYRESCHWALBE SMART SAM 24x2.35", 67TPI WB
REAR TYRESCHWALBE SMART SAM 24x2.35", 67TPI WB
HEADSET1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEMFORGED AL6061, 35MM REACH
BARS640MM DOUBLE BUTTED AL6061, 30MM RISE
GRIPSER LOCK ON KRATON 115MM
SEAT POSTAL6061, 27.2MM x 350MM
SADDLEER WING 2, BLACK
SEAT CLAMPER QR, 31.8MM
DERAILLEURSHIMANO CUES 9-SPEED MECH
SPEC NOTICEEvery effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice
Geometry
AWheelbase992.2mm
BHead Angle67°
CSeat Tube Length320mm
DChainstay Length392mm
ESeat Tube Angle73°
FStandover Height600mm
GTop Tube Length513.5mm
HHead Tube Length92mm
IStack497.3mm
JReach361.5mm
KFork Length410mm

Meet the new Seeker 24

Built to handle off-road adventures with ease and a confident ride on varied terrain. The Seeker 24 comes equipped with a Shimano CUES 1x9 drivetrain with a light-action thumb shifter ensures smooth, responsive shifting, while the 130mm crankarms offer efficient pedalling. Setup with powerful Tektro hydraulic disc brakes, sealed bearing wheels with bolt-thru axles and Schwalbe Smart Sam 2.3" tires, this bike is ready for anything from light trails to full on off-road adventures.

Seeker 24 (pre-order)
Color
Color: Brushed Aluminium
Description
Built to handle off-road adventures with ease and a confident ride on varied terrain. The Seeker 24 comes equipped with a Shimano CUES 1x9 drivetrain with a light-action thumb shifter ensures smooth, responsive shifting, while the 130mm crankarms offer efficient pedalling.

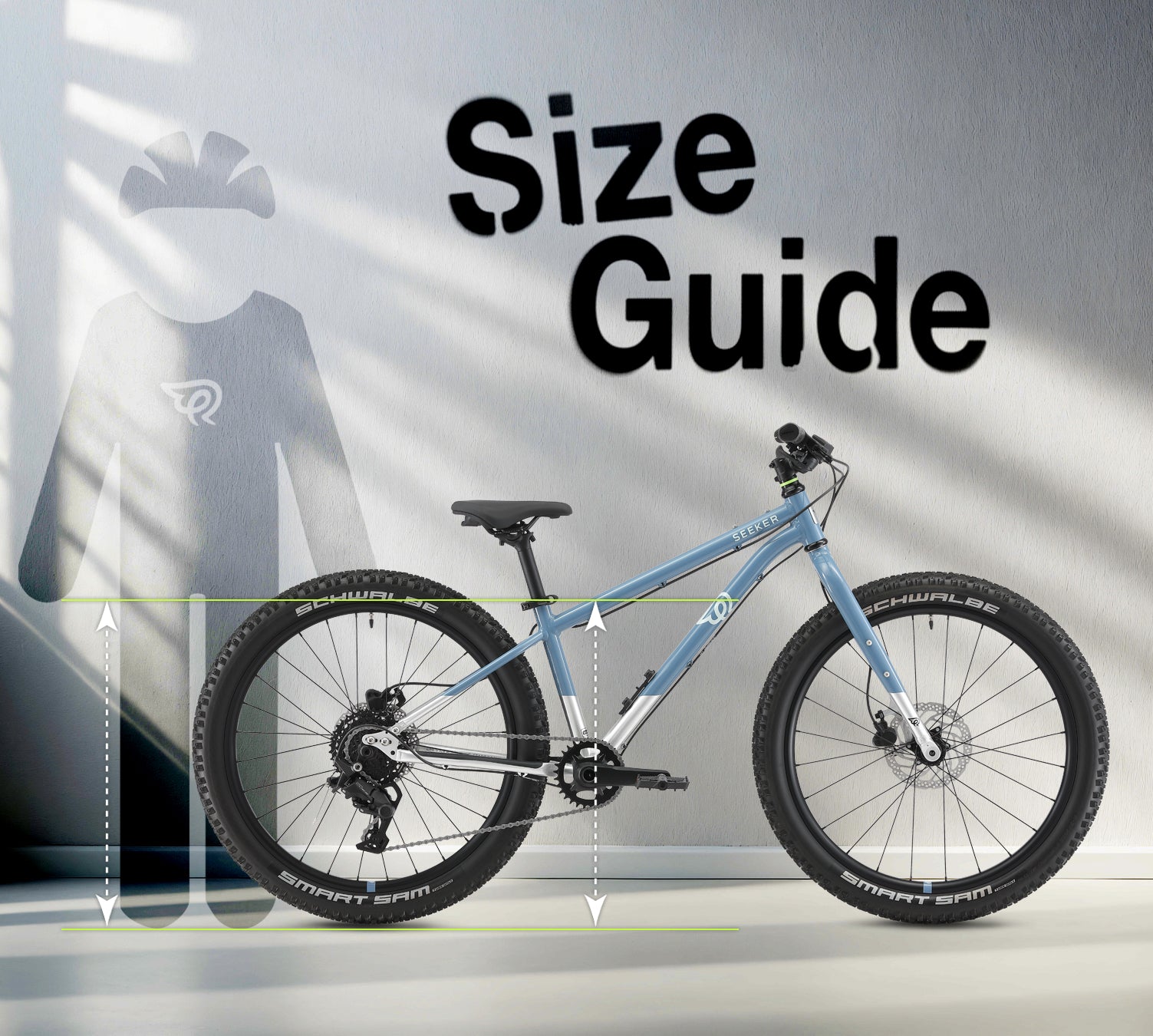

SIZE OF LEG
23.6in
AGE
8-11years
WEIGHT
21.75lb
Belter 24 (pre-order)
Color
Color: Brushed Aluminium
Description
Ready for more challenging city rides, this 24" bike is built with a lightweight aluminium frame and updated geometry for superior stability and handling.
SIZE OF LEG
23in
AGE
8-11years
WEIGHT
22.48lb

Product Main Features

24'' wheels
24'' Wheels
Chain drive
8-Speed Shimano internal gear hub
Hydraulic Disc brakes
Belt drive

Product Specification

Schwalble Smart Sam 2.35" Tyres
Schwalbe Billy Bonkers Tyres
Shimano CUEs 1x9 Drivetrain
Tektro Hydraulic disc brake
Tektro Hydraulic Disc Brakes
Presta Valve
