Belter 20 Auto (New)
Description
Accessories for this bike
Specs and Geometry
Specification
STANDOVER HEIGHT | 52CM |
FRAME | HAND BRUSHED AL6061, FORGED DROP OUTS |
FORK | HAND BRUSHED AL6061, FORGED DROP OUTS |
STEERER | TUBE AL6061 |
CRANKS | CRUX CNC'D AL6061, 110MM |
PEDALS | ER AL6061, CAGE, CARTRIDGE BEARING |
BOTTOM BRACKET | CRUX EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING |
RIMS | 20 X 20H FRONT, 24H REAR, DOUBLE WALLED AL6061 |
REAR HUB | STURMEY ARCHER 2-SPEED AUTO, 24H |
FRONT HUB | CNC’D AL6061, HOLLOW 7075 AXLE |
AXLES | AL6061 |
BELT | EARLY RIDER 970MM x 10.0P x 12MM WIDTH |
FRONT SPROCKET | CNC'D AL6061, 34T, AL6061 AXLE, DUAL GUARD |
WEIGHT | 7.7KGS W/O PEDALS |
REAR SPROCKET | CNC'D AL7075, 25T DUAL GUARD |
BRAKES | TEKTRO 837AL |
LEVERS | TEKTRO SHORT REACH, JL-352 |
FRONT TYRE | SCHWALBE BILLY BONKERS 20 x 2.0", 60TPI WB |
REAR TYRE | SCHWALBE BILLY BONKERS 20 x 2.0", 60TPI WB |
HEADSET | 1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
STEM | FORGED AL6061, 35MM REACH |
BARS | 560MM DOUBLE BUTTED AL6061, 25MM RISE |
GRIPS | ER LOCKON |
SEAT POST | AL6061, 27.2MM x 250MM |
SADDLE | ER WING 2 |
SEAT CLAMP | ER BOLT, 31.8MM |
SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |

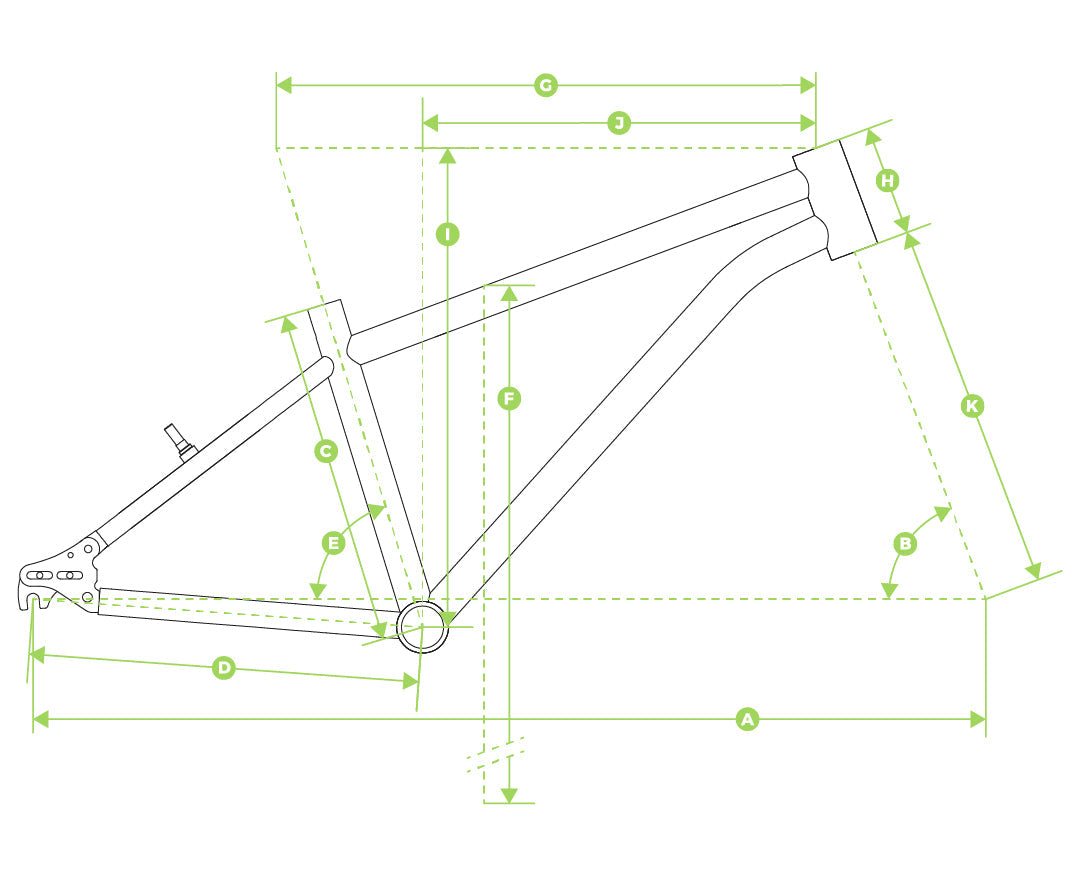

Geometry

A | Wheelbase | 870mm | |
B | Head Angle | 67° | |
C | Seat Tube Length | 270mm | |
D | Chainstay Length | 340mm | |
E | Seat Tube Angle | 73° | |
F | Standover Height | 500mm | |
G | Top Tube Length | 452.6mm | |
H | Head Tube Length | 92mm | |
I | Stack | 422.9mm | |
J | Reach | 323.3mm | |
K | Fork Length | 340mm |

Meet the new Belter 20 Auto
The Full Story

Super lightweight beautifully crafted aluminium.
We use 6061-grade aluminium in our bikes. It's a fantastic material. Strong yet light, weatherproof and super robust.
It’s also a responsive material transferring more power from the pedals to the wheels. In real terms, this means it’s easier to pedal further for longer.
The benefit is a bike that literally goes the distance.

Geometry to get kids moving
Like all of our Belters, the Belter 20 has a more progressive geometry so that kids can tackle the tightest turns and steepest slopes with confidence and capability.

The Gold Standard for Gearing
So whether it’s sailing up hills or riding in the rain you can trust these impressively light, and incredibly durable gears to perform.
It’s combination like this that won the Belter, the only kids bike, ever to win the bike industry's most coveted prize, the Eurobike Gold Award.

Fantastic finish touches

Tyres that won't throw them off track
Their extra volume and grip provide added control over the lumps and bumps and give the cushioning that makes riding more enjoyable.
2.0” tyres are also much more stable, especially in tricky conditions. With a bike that is more stable, you can shorten the rear triangle, and that improves handling and manoeuvrability making the bike more capable still.
