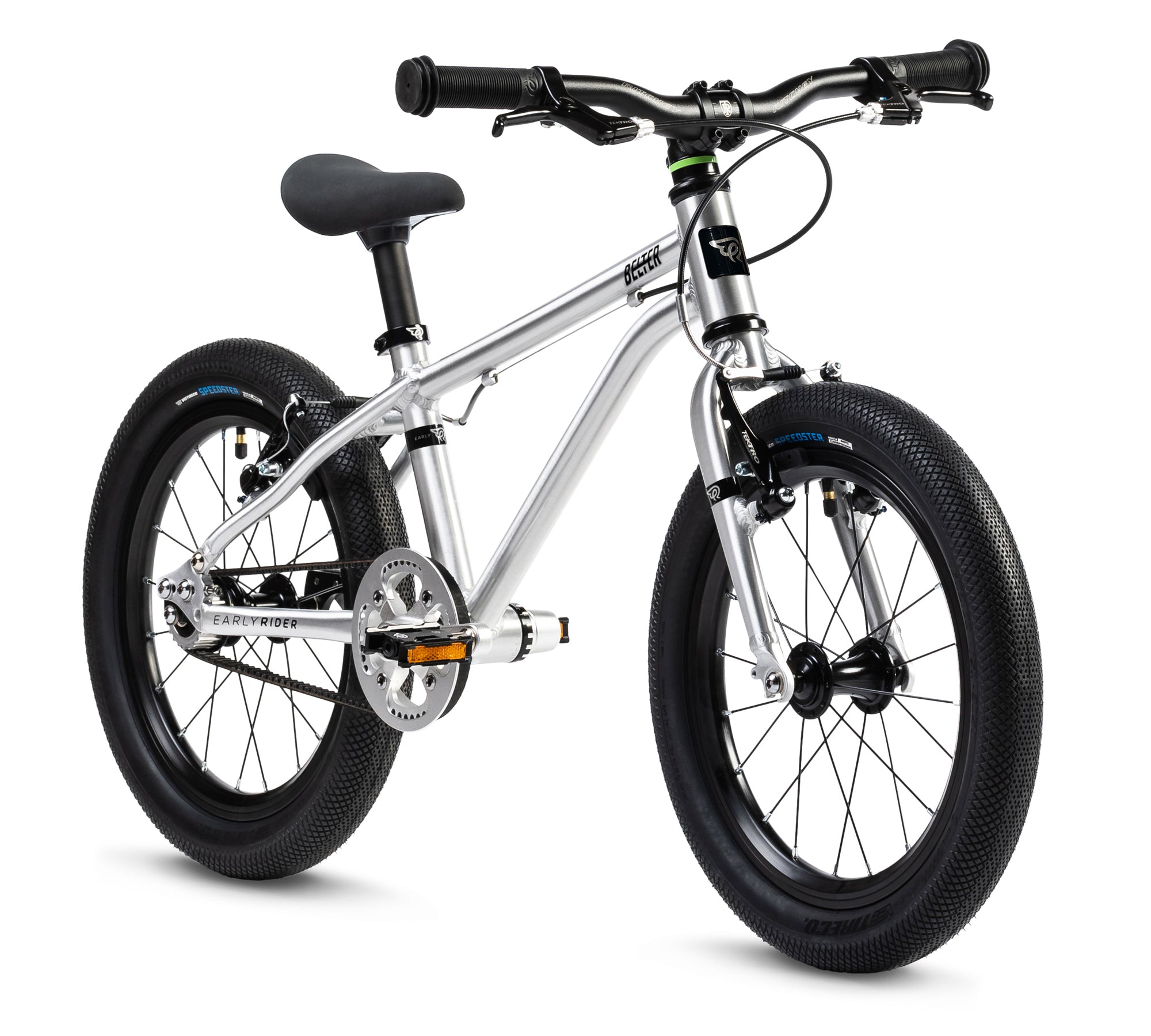

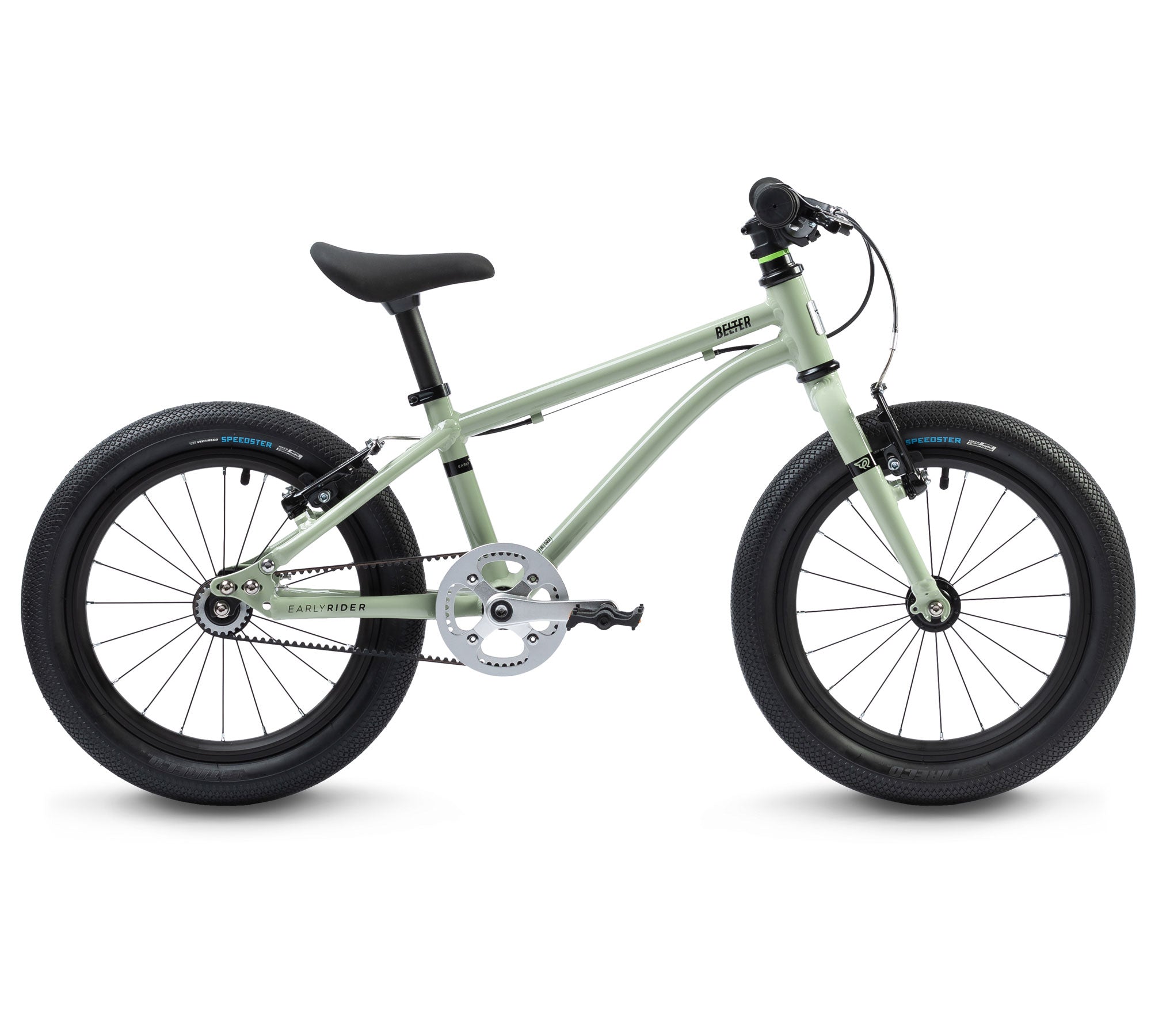

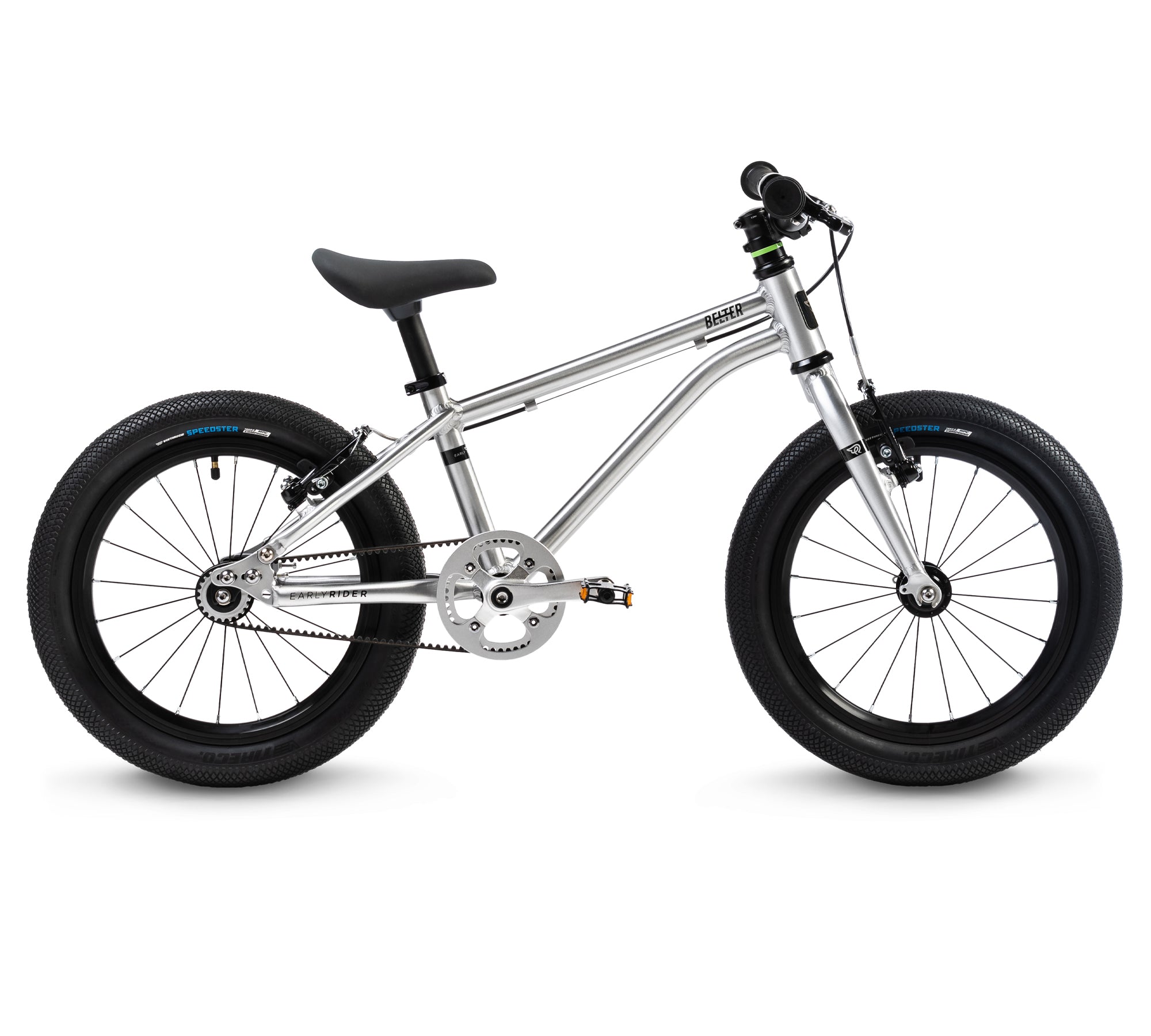

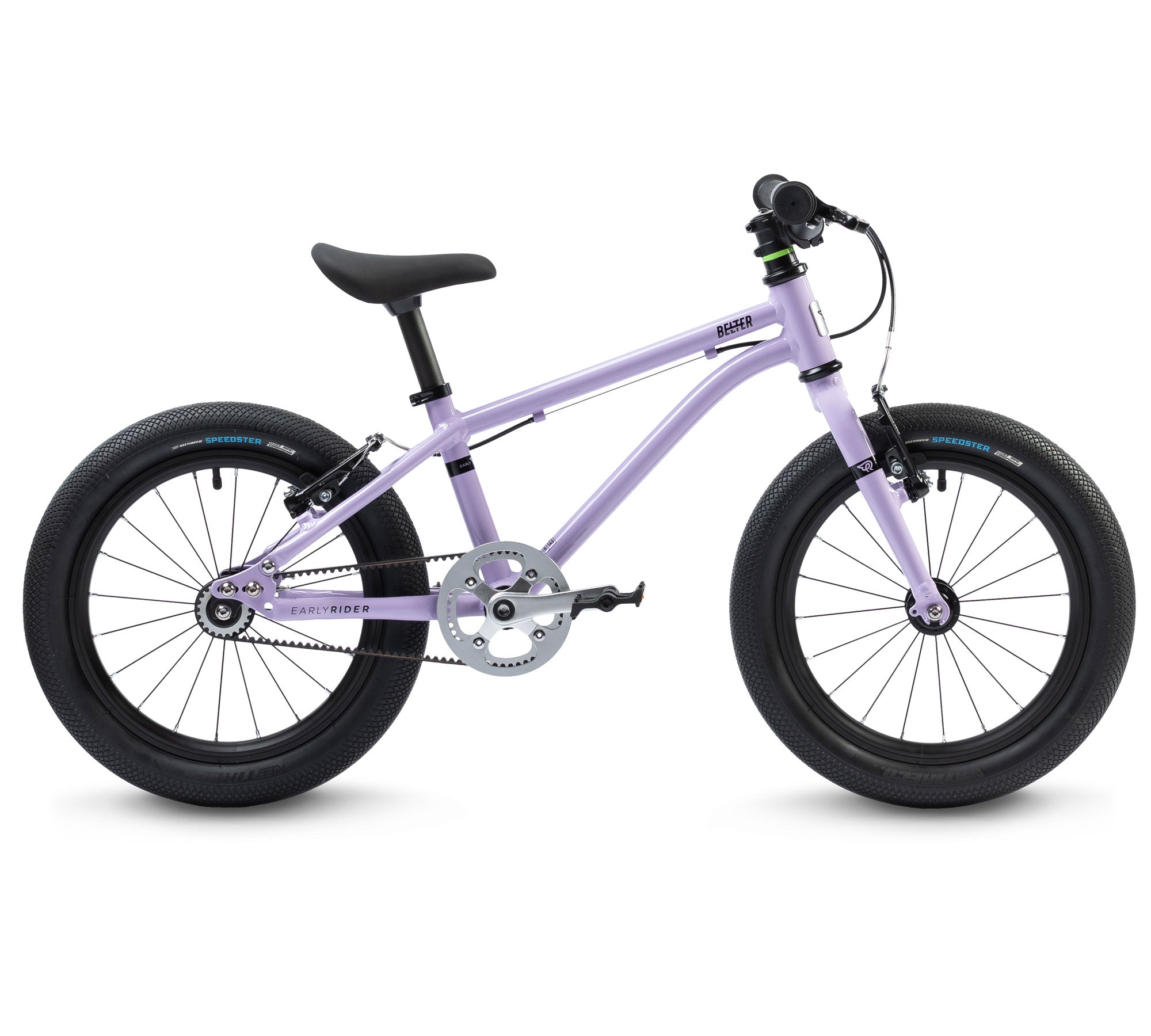

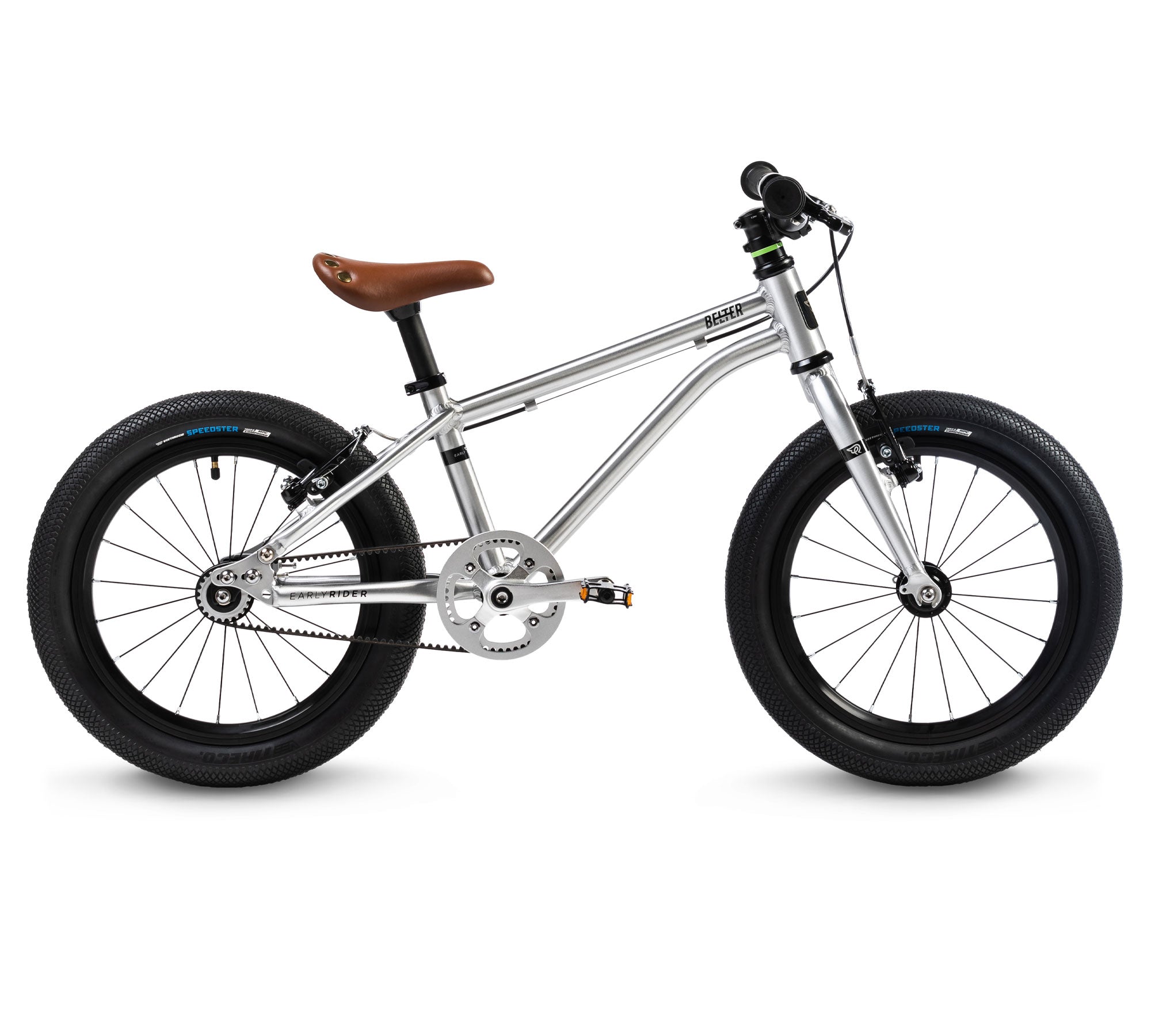

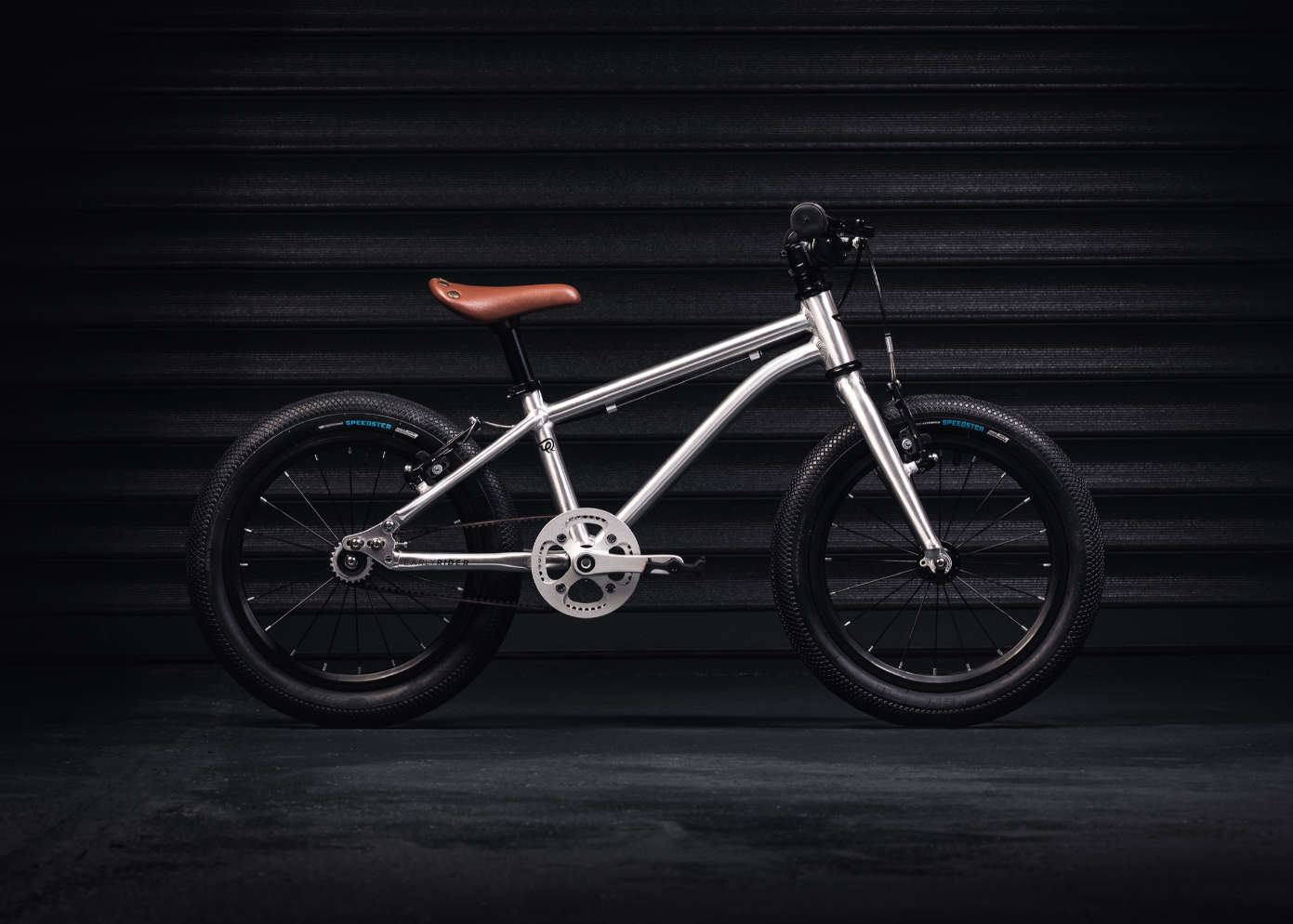

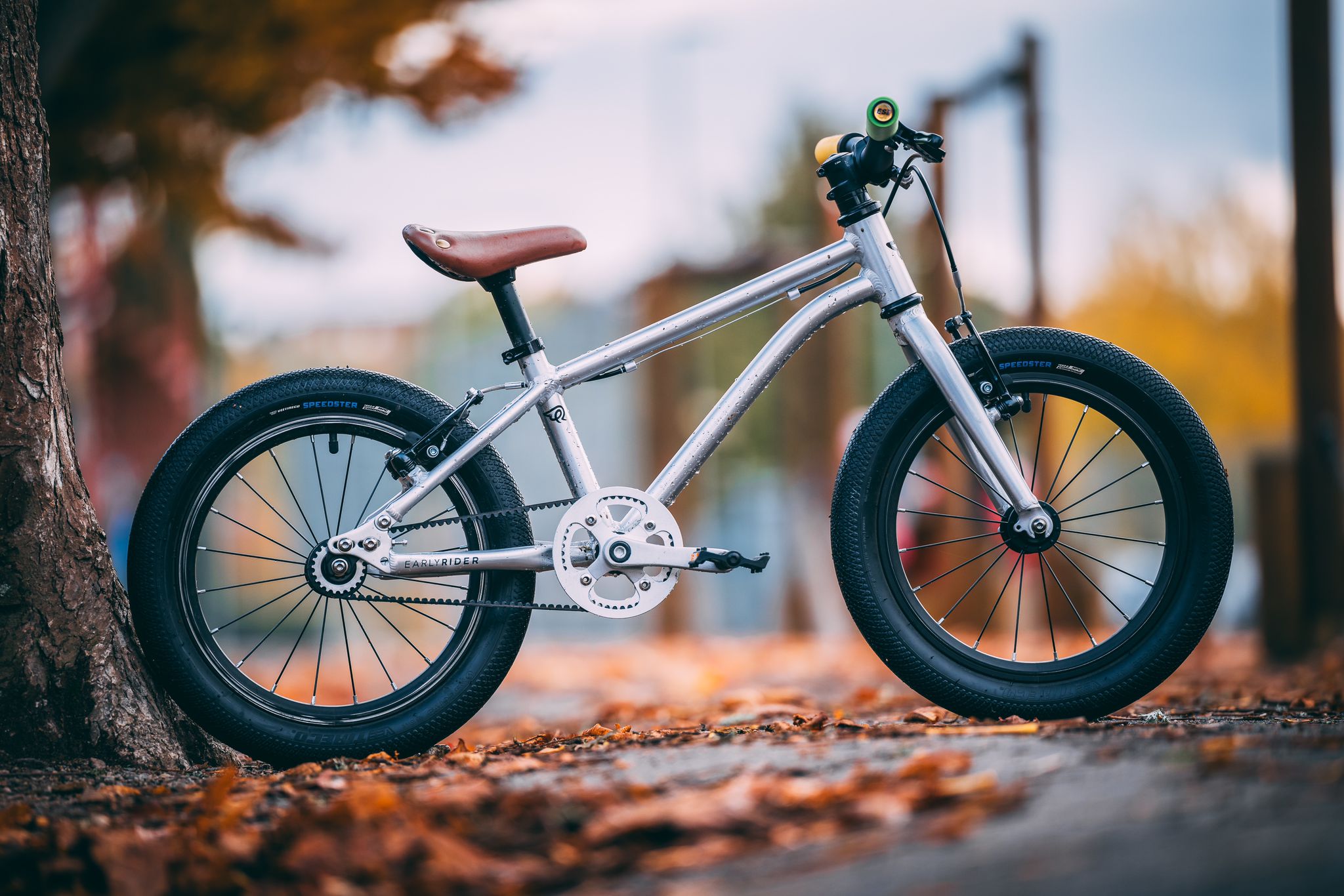

Belter 16 (2019)



Regular price $439.00 Sale price $375.00 clear all

Out of stock

Thanks! We will notify you when this product becomes available.

Belter 16 (2019)

Belter 16 (2019)

0
1
2
3
4
5
6
7
8
9
10
11
70
80
90
100
110
120
130
140
150
160cm
2 - 4
2 - 4
2 - 4
2 - 4
2 - 4
2.5 - 5
3.5 - 6
5.5 - 8
8 - 11
2.5 - 5
3.5 - 6.5
5.5 - 8
8 - 11
3.5 - 6
5.5 - 8
8 - 11
70 - 80
72.5 - 82.5
80 - 85
87.5 - 102.5
87.5 - 102.5
92.5 - 110
102.5 - 120
117.5 - 135
130 - 150
92.5 - 110
102.5 - 120
117.5 - 135
130 - 150
100 - 120
117.5 - 135
130 - 150

STANDOVER HEIGHT

42CM

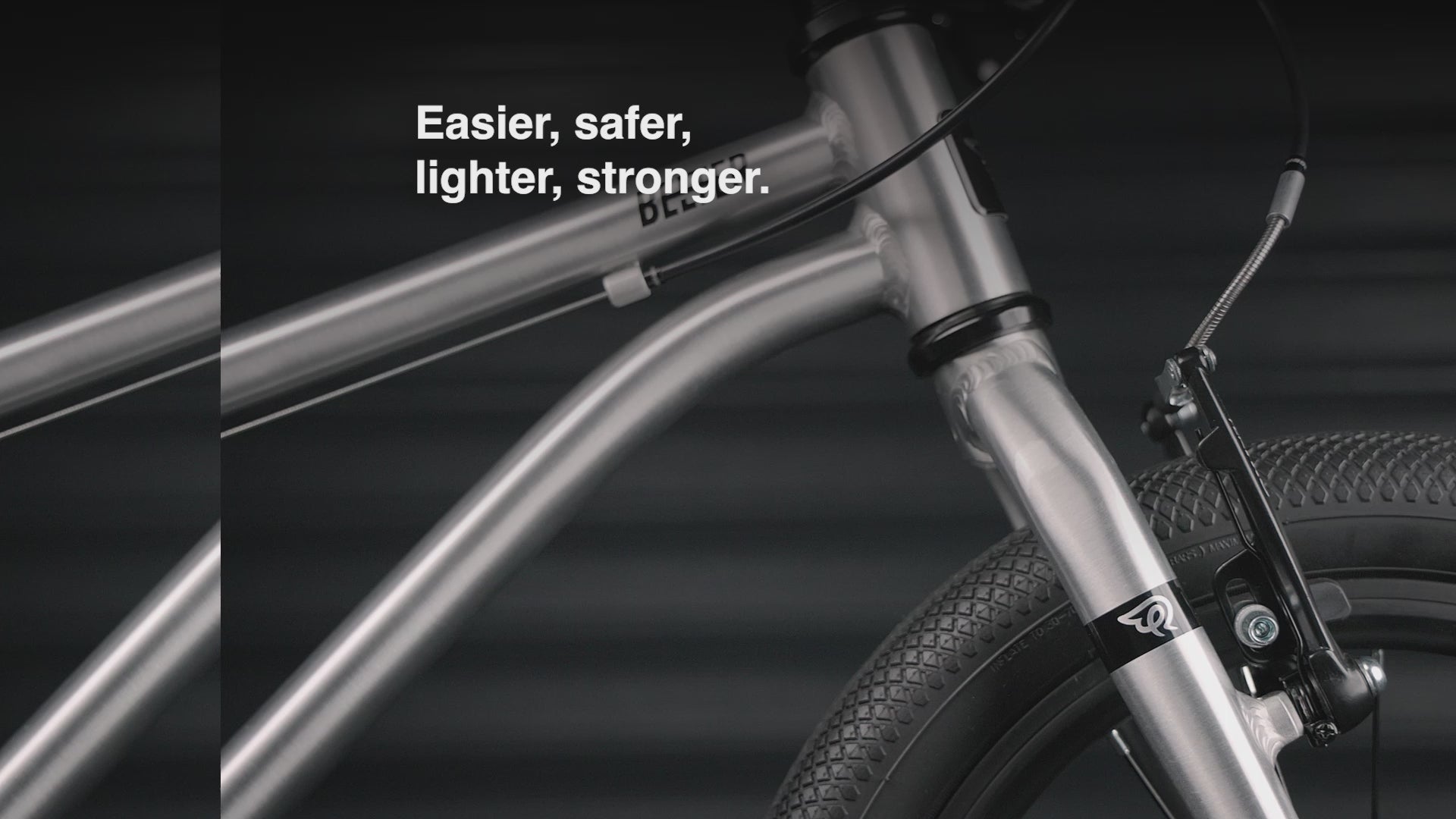

FRAME

HAND BRUSHED AL6061, FORGED DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE

AL6061

CRANKS

CNC'D AL6061 105MM

PEDALS

ER AL6061, CAGE, CARTRIDGE BEARING

BOTTOM BRACKET

ER EXTERNAL CUP, SEALED CARTRIDGE BEARING

RIMS

16 x 20H, DOUBLE WALLED AL6061

REAR HUB

FOUR-BEARING CASSETTE FREE HUB, CNC'D AL6061

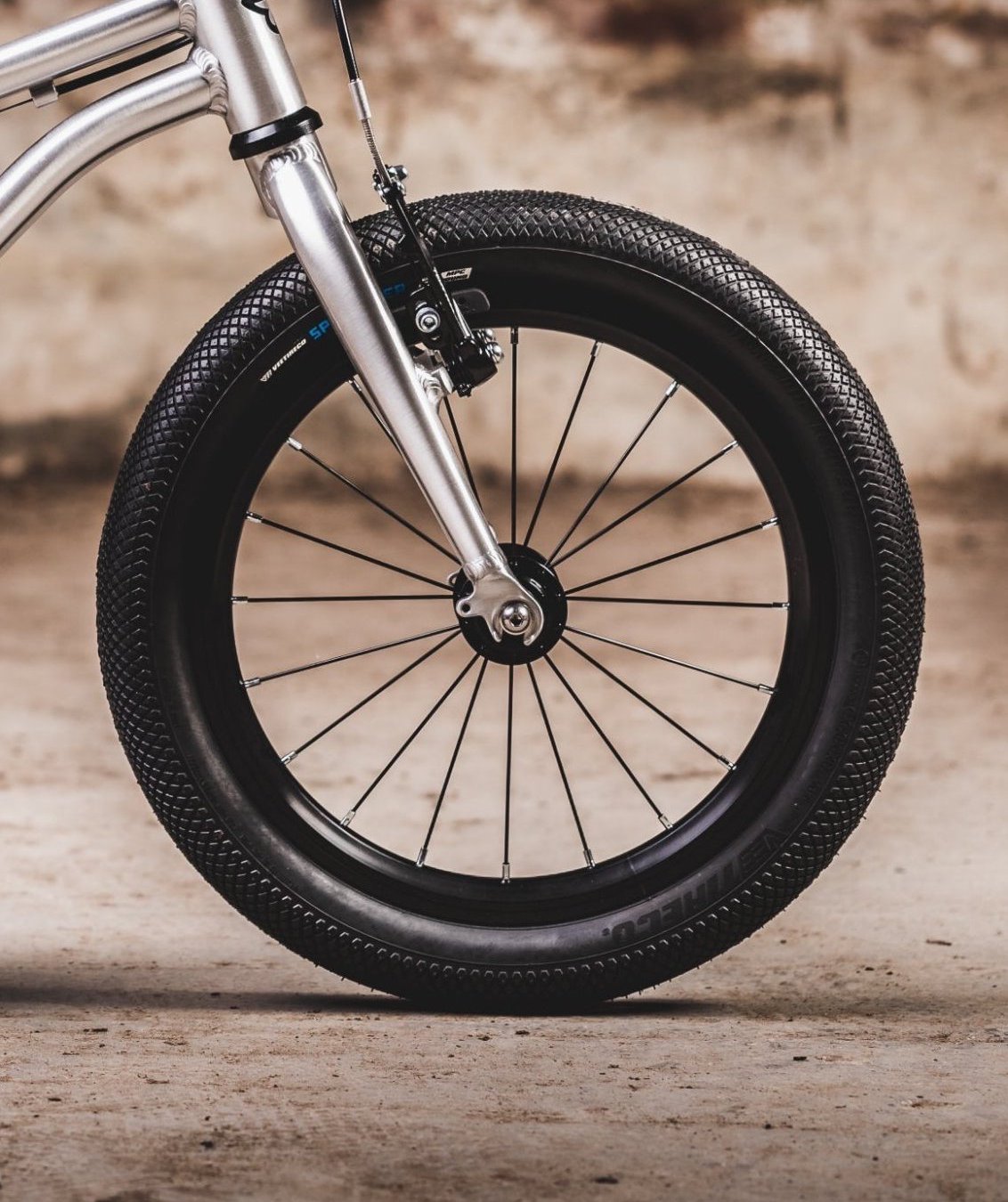

FRONT HUB

CARTRIDGE BEARING, CNC'D AL6061

AXLES

HOLLOW, THREADED AL7075

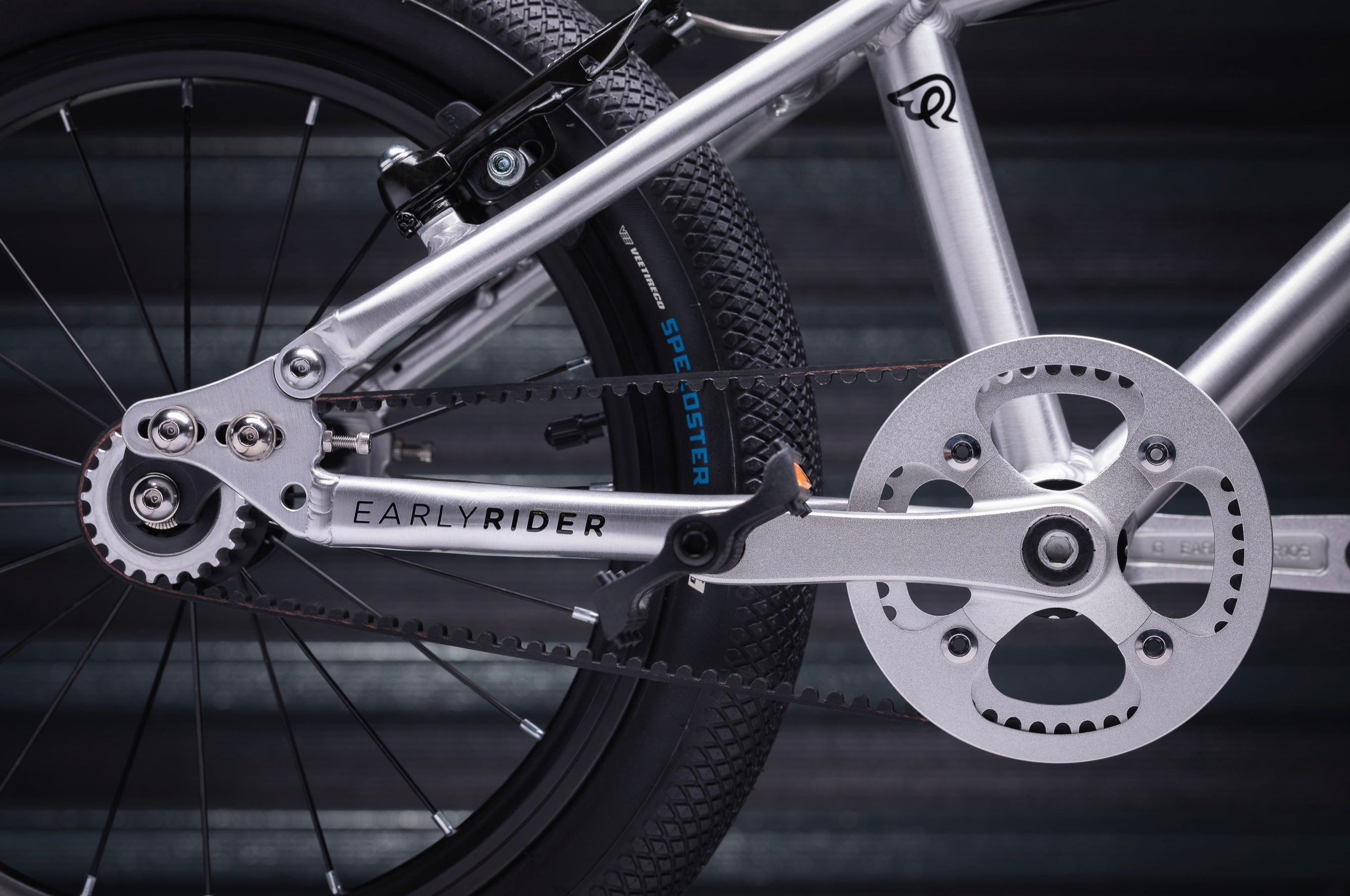

BELT

GATES POWERGRIP 800-8M

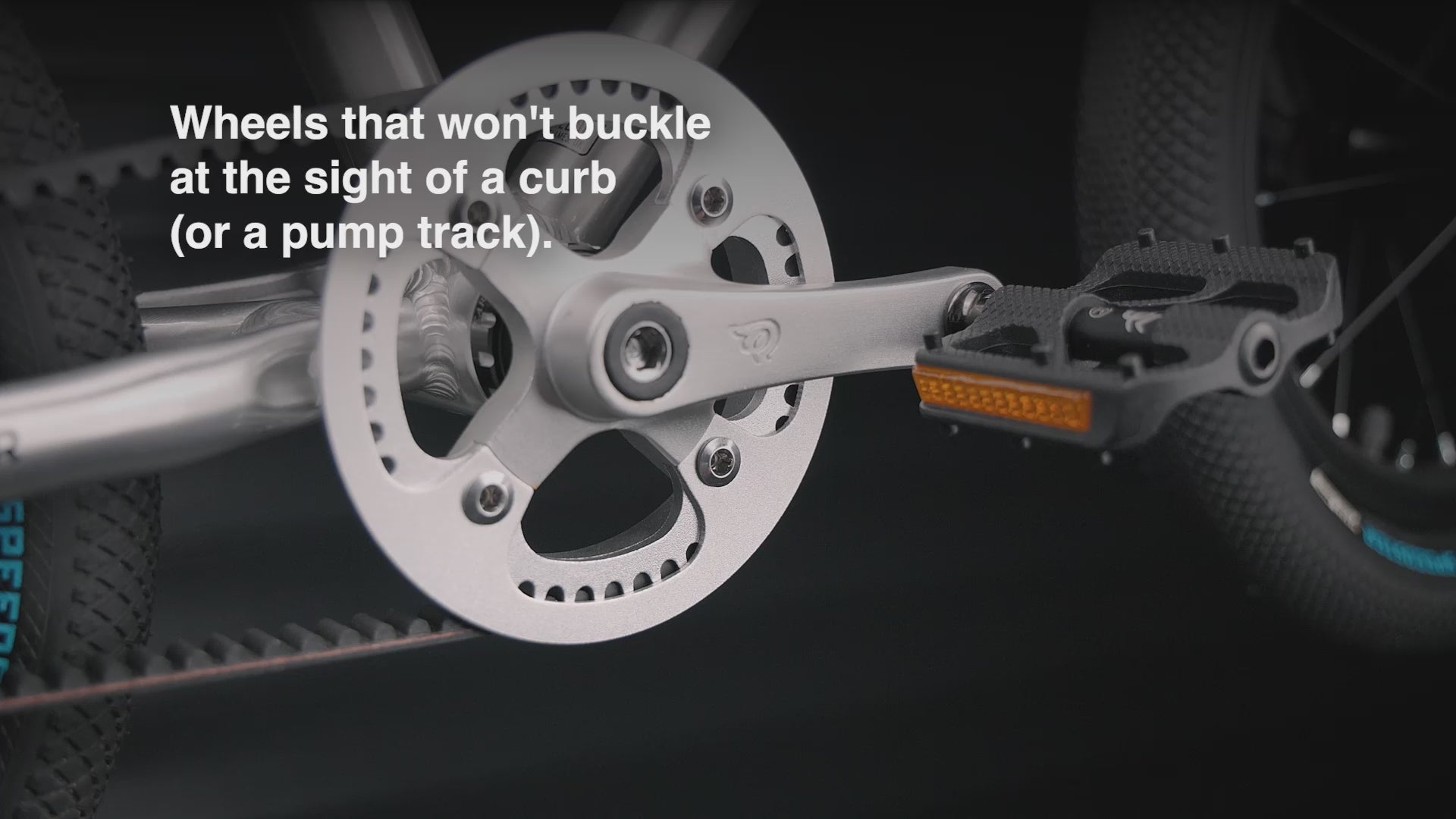

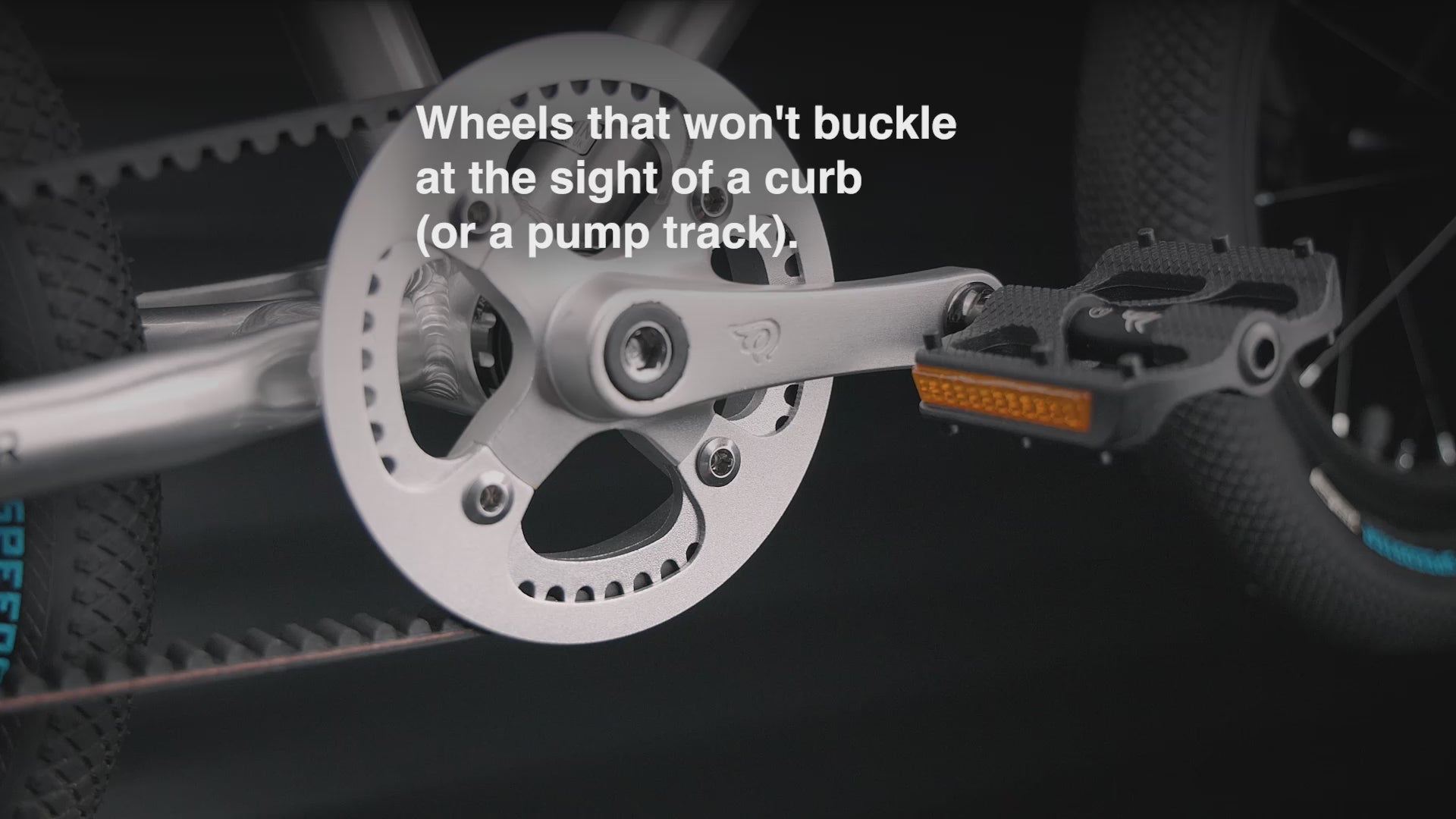

FRONT SPROCKET

CNC'D AL7075, 46T, HOLLOW AL7075 AXLE

WEIGHT

5.6KGS

REAR SPROCKET

CNC"D AL7075, 22T

BRAKES

TEKTRO BX1V

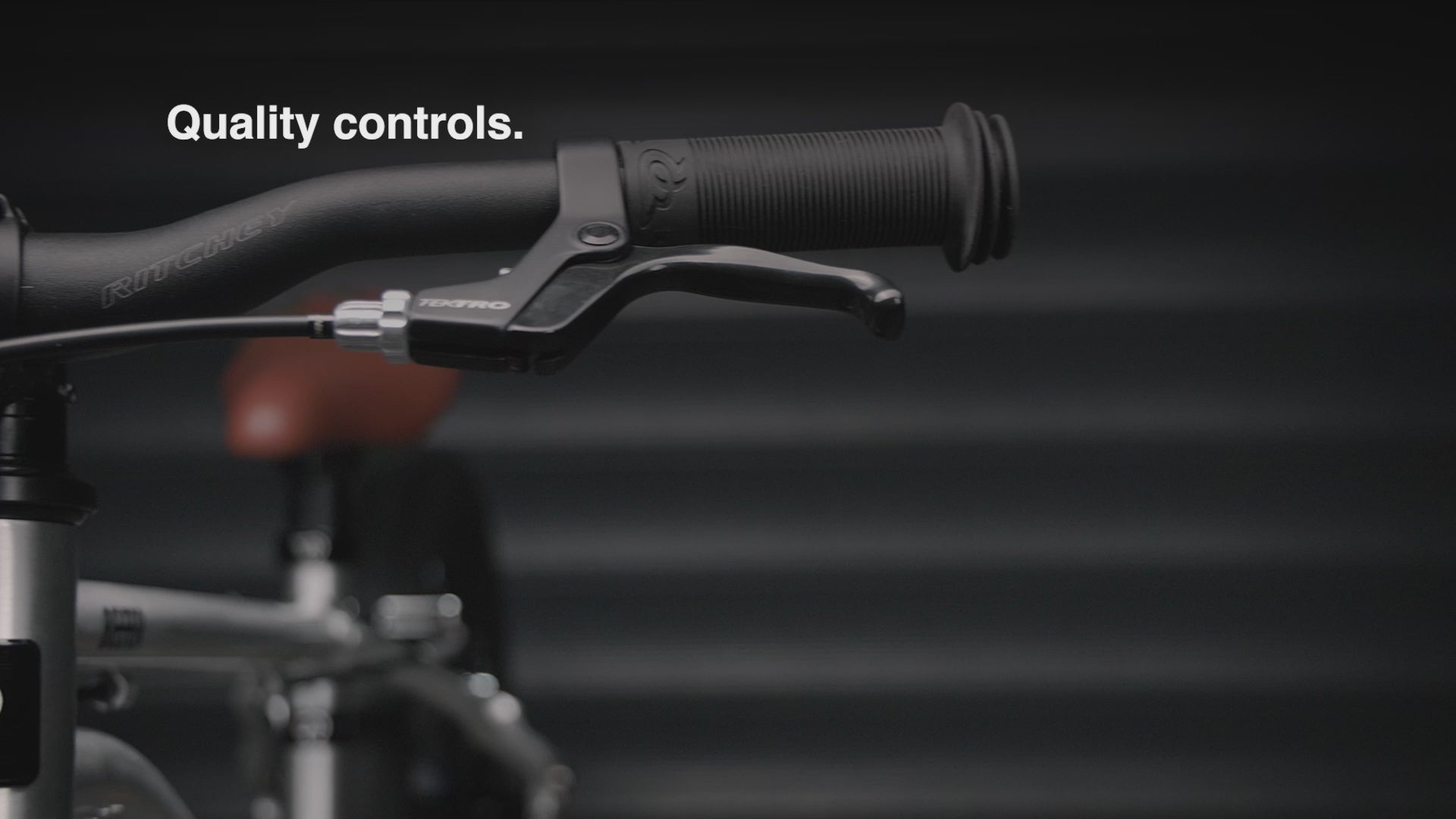

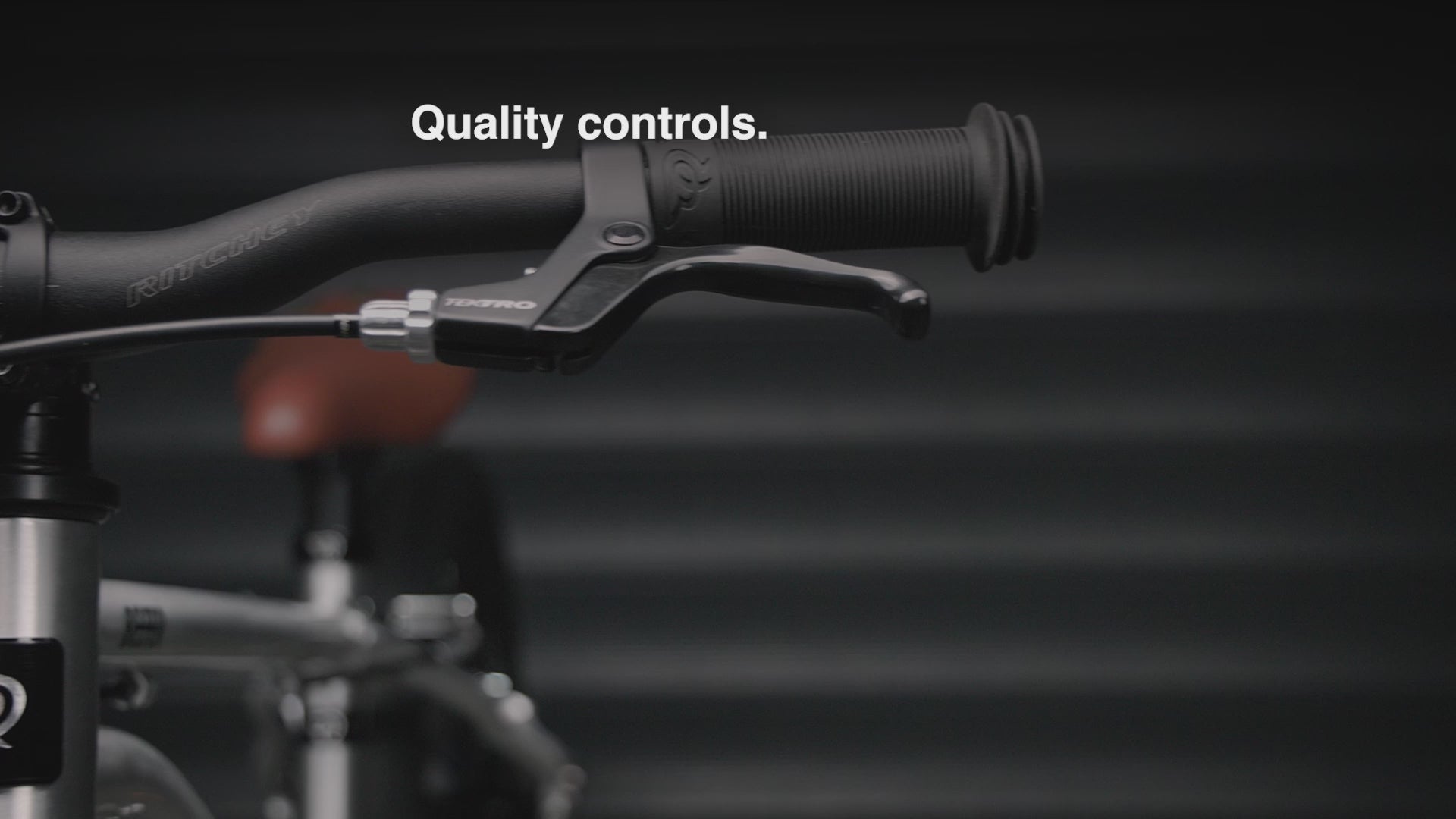

LEVERS

TEKTRO SHORT REACH JL350

FRONT TYRE

16*1.5 INNOVA-2054

REAR TYRE

16*1.5 INNOVA-2054

HEADSET

1 1/8” CONVENTIONAL

STEM

RITCHEY OS FORGED AL6061, 60MM REACH

BARS

480MM RITCHEY OS DOUBLE BUTTED AL6061, 20MM RISE

GRIPS

ER SOFT TOUCH MUSHROOM

SEAT POST

AL6061, 25.4MM

SADDLE

BROWN RIVETTED FAUX LEATHER

SEAT CLAMP

ER BOLT, 28.6MM
